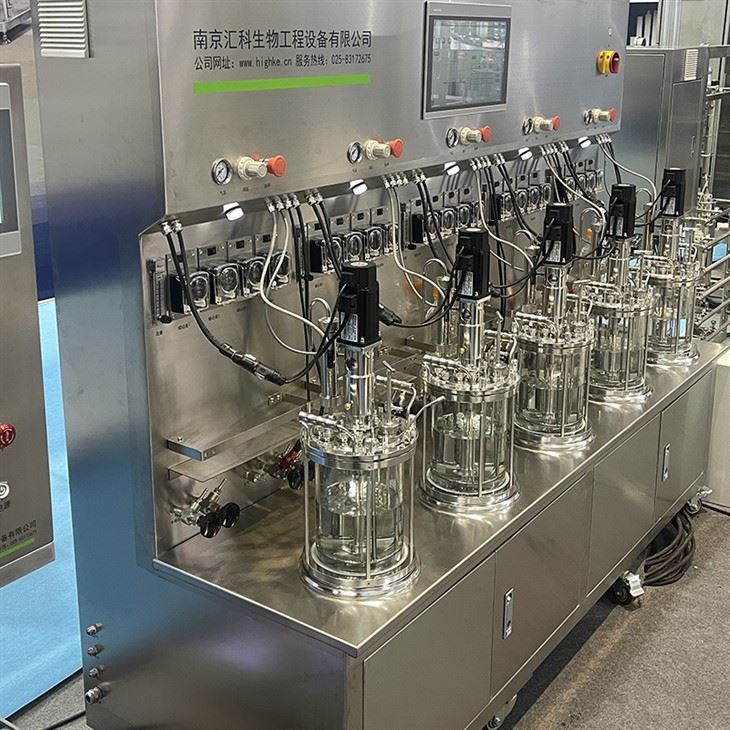

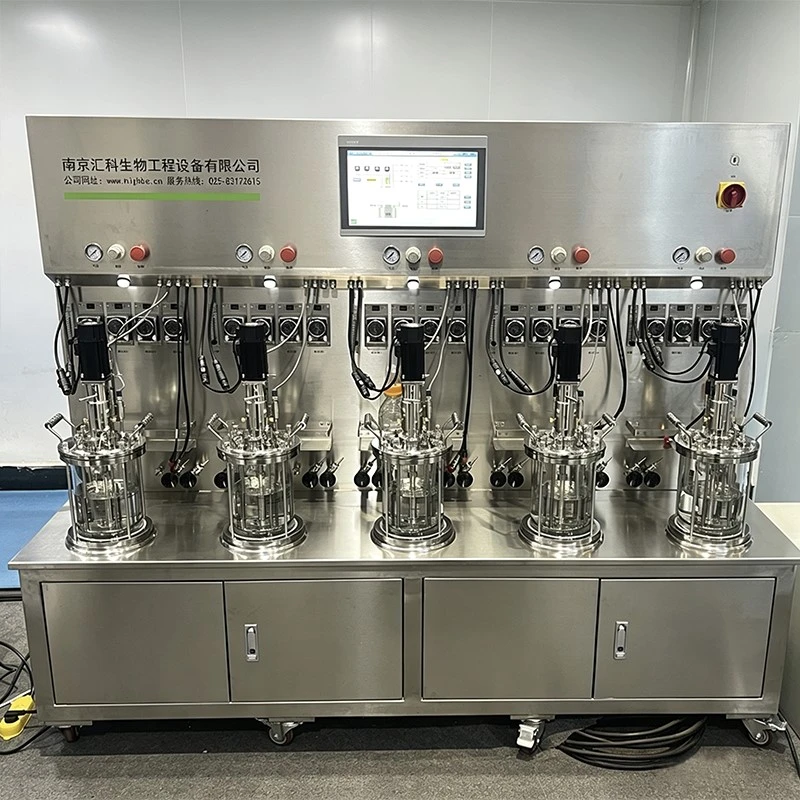

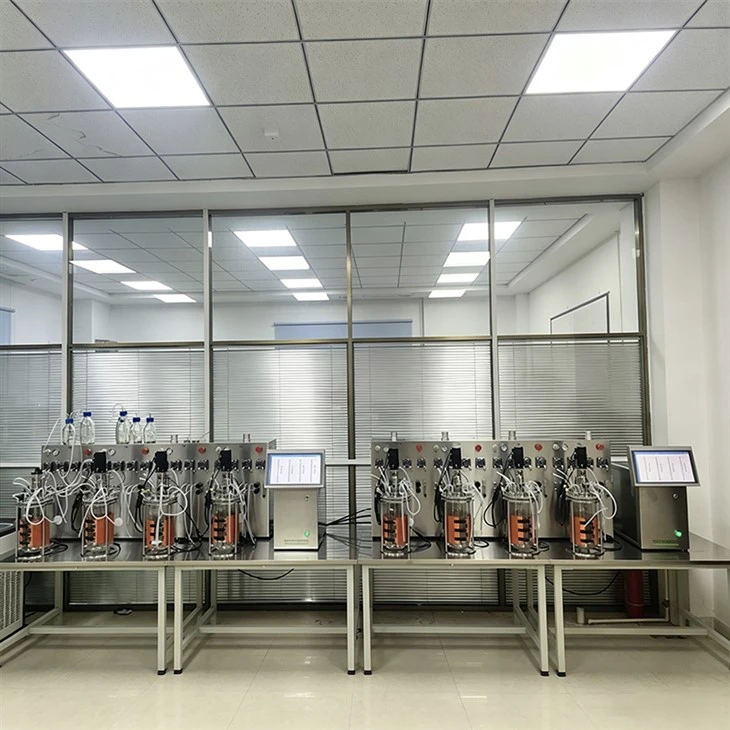

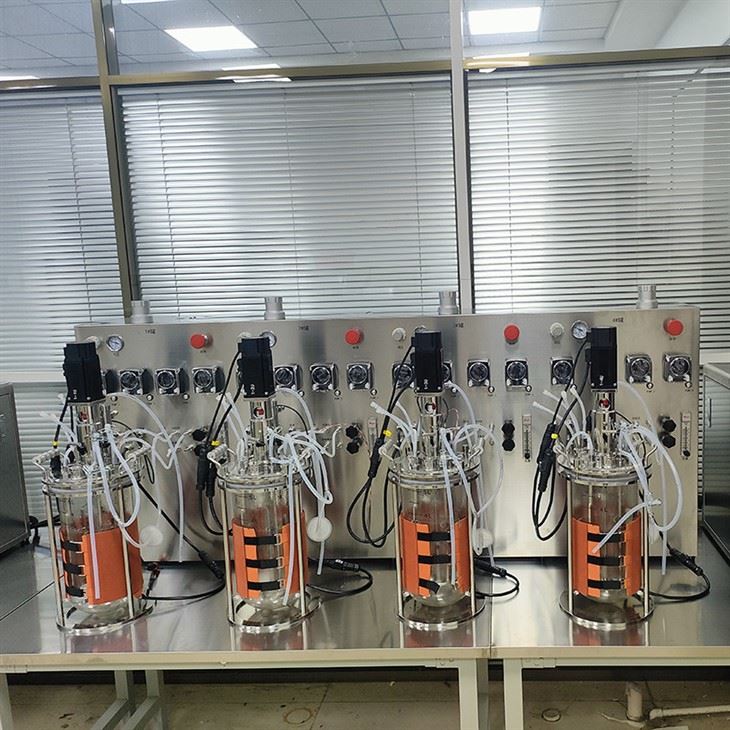

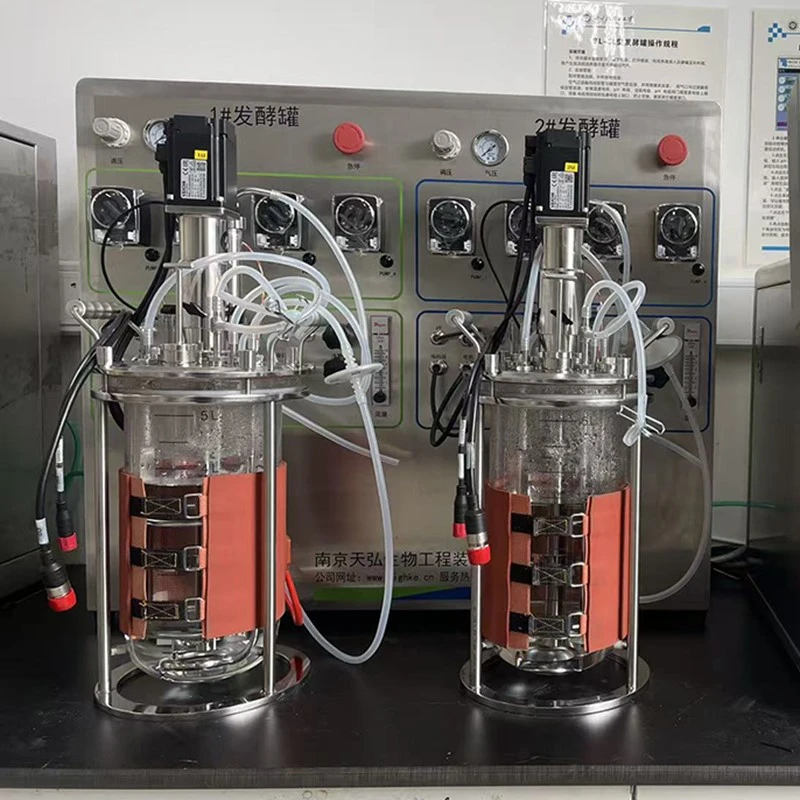

The Multi-Parallel Experimental Bioreactor integrates multiple independent fermentation units in a single system for strain screening, media optimization, and parallel process parameter validation. Equipped with 2 to 16 independent fermentation vessels – typically high-borosilicate glass with volumes from 500 mL to 5L – this system enables simultaneous comparative experiments under identical or differentiated culture conditions. The parallel design significantly reduces batch-to-batch variation and shortens process optimization cycles.
Parallel Configuration and Independent Control
Each fermentation unit operates independently with its own temperature, agitation speed, and aeration control. The centralized control system allows unified adjustment of key parameters across all units, while also enabling independent parameter tuning for individual units to meet specific experimental requirements. Each unit is equipped with its own pH and DO sensors for real-time data acquisition and recording.
Flexible Sterilization Options
The system supports both in-situ sterilization (SIP) and ex-situ sterilization (WIP), accommodating different laboratory sterilization conditions. This flexibility allows the system to be adapted to various facility configurations and experimental protocols.
High Throughput and Experimental Efficiency
The parallel design enables multiple experimental conditions to be tested simultaneously under the same environmental conditions, dramatically reducing the time required for process optimization. This high-throughput capability is particularly valuable for strain performance comparison, media formulation screening, and fermentation parameter optimization studies.
Typical Applications
The multi-parallel bioreactor is used in bioengineering laboratories for strain performance comparison, media formulation screening, and fermentation process parameter optimization (temperature, pH, dissolved oxygen). It is also suitable for pilot-scale process validation in pharmaceutical and food fermentation industries.
Manufacturing Expertise and Support
NanJing TianHong Bioengineering Equipment Co., Ltd. was established by research leaders from the National Engineering Research Center for Biotechnology and Nanjing Tech University, with over 30 years of practical experience. The company holds ISO9001 certification, special equipment production licenses (covering Class I and II medium/low pressure vessels and GC2 industrial pipeline installation), and more than 30 fermentation-related patents. With over 3,000 sets of bioreactors supplied and more than 500 fermentation projects completed over 20 years, the company provides reliable, high-quality laboratory fermentation solutions.
Product Specifications
|
Parameter |
Description |
|
Number of Units |
2 to 16 independent fermentation vessels |
|
Vessel Volume |
500 mL to 5L |
|
Vessel Material |
High-borosilicate glass |
|
Agitation |
Individual agitation control per unit |
|
Sterilization |
SIP (in-situ) or WIP (ex-situ) |
|
Sensors |
Independent pH and DO sensors per unit |
|
Control System |
Centralized PLC control with individual unit adjustment |
|
Data Acquisition |
Real-time data recording for each unit |
